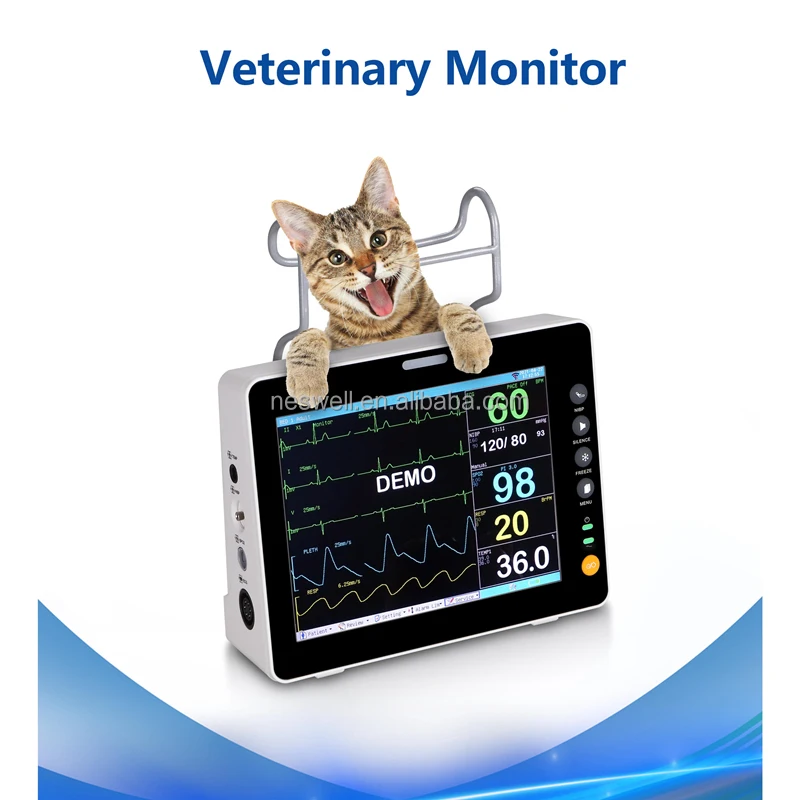

8-Inch LCD Pet Veterinary Patient Monitor Six Parameter PR ECG TEMP SPO2 NIBP HR RESP Animal Use Veterinary Monitoring Devices
Product details
| Management number | 235187442 | Release Date | 2026/07/02 | List Price | US$778.32 | Model Number | 235187442 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
SPECIFICATIONS
After-sale Service: Free Spare Parts
Brand Name: Neswell
Certificate: ISO
Goss weight: 3.5KG
Instrument classification: Class II
Material: Metal
Model Number: 6000B Vet
Origin: Mainland China
Place of Origin: Guangdong, China
Power Source: Electric
Power Supply Mode: Built-In Battery
Properties: Diagnosis & Injection
Quality Certification: CCC
Safety standard: None
Shelf Life: 1years
Size: 8 inch lcd
Voltage: 110-220V
Warranty: 1 Year, 12months for main host, 3months for accessories
package: 35cm*25cm*28cm
|

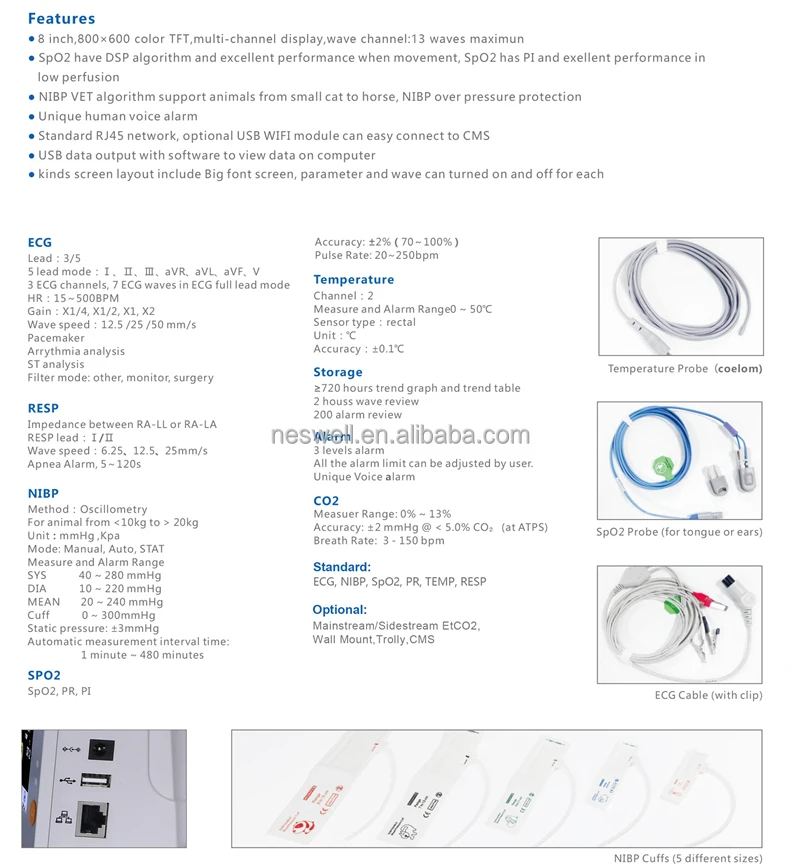

Features:
|
8" color TFT LCD screen, resolution 800*600
Waterproof design, resistance to dropping (1 meter)
Low power consumption, fanless
structure which creates no noise Support external 13-20V DC power, continuously working for 5.5 hours above on battery backup, full charge with 2.5 hours, suitable for Ambulance, Emergency Transport Display mode: Big font, trends review, 7 leads ECG waveform on same screen, and etc 15 kinds of arrhythmia analysis, 15 kinds of drug concentration analysis Anti-electrosurgical unit (300W), anti-defibrillation (360J), suitable for Operating Room, General Ward Digital SpO2 technology, excellent anti-interference performance, low perfusion (0.1%)
Support languages:Chinese，English，Spanish，Portuguese，Russian，French，German，Czech，Denish，Dutch，Finland，Italian，Polish，Turkish，Taiwan Trad，Romania
，Ukrainian |
|
Standard parameter with full accessories:
|
ECG Lead:
Standard 3/5 lead Lead Mode: 5 Leads (RA, LA, LL, RL,V) Lead Selection: I, II, III, avR, avL, avF, V Lead Mode: 3 Leads
(RA, LA, LL) Lead Selection: I, II, III, Gain: 2.5mm/mV, 5.0mm/mV, 10mm/mV, 20mm/mV
HR and Alarm Range:
Adult: 15 ~ 300 bpm
Ped/Neo: 15 ~ 350 bpm Accuracy: ¡À1% or¡À1bpm, which is greater Resolution: 1 bpm Sensitivity: > 200 (uVp-p) Differential Input Impedance: > 5 M¦¸
Bandwidth:
Surgery 1 ~ 20 Hz Monitor 0.5 ~ 40 Hz Diagnostic 0.05 ~ 130 Hz
CMRR:
Monitor > 100 dB Operation >
100 dB Diagnosis > 90 dB Electrode Offset Potential: ¡À300mV Range: ¡À2 mV ~ ¡À700 mV Width: 0.1 ms ~ 2 ms Rise time: 10 us ~ 100 us ST Segment Monitoring Range: Measurement Range: -2.0 ~ +2.0 mV Measurement Accuracy: -0.8 ~ +0.8 mV Measurement Error: ¡À0.02 mV or ¡À10%
RESP
Method: Impedance Between RA-LL or RA-LA Measuring Impedance Range: 0.3~3 ¦¸ Base line Impedance Range: 200~4 K¦¸
Bandwidth: 0.1~2.5Hz
NIBP
Method: Oscillometric Mode: Manual, Auto, STAT Measuring Interval in Auto Mode: 1, 2, 3, 4, 5, 10, 15,
30, 60, 90,120, 180, 240,480 (Min) Measuring Period in STAT Mode: 5 Min Pulse Rate Range: 40 ~ 240 bpm
SpO2
Measuring Range: 0 ~
100 % Resolution: 1 % Accuracy: 70% ~ 100% ¡À2 % 0% ~ 69% unspecified Pulse Rate: Measuring Range: 20~300 bpm Resolution: 1bpm Accuracy: ¡À3bpm
TEMP
Applicable Temperature Sensor: YSI, CYF Channel: 1 Measuring Range: 0 ~ 50 ¡æ Resolution: ¡À0.1 ¡æ Accuracy:
¡À0.1 ¡æ (Do not including sensor error) Dimension: 210*80*175mm (L*W*H) Weight: 1.35kg Standard: 3/5-Lead ECG, RESP, SpO2, NIBP, PR, 1-TEMP
Optional: Mainstream/Sidestream EtCO2
|
|

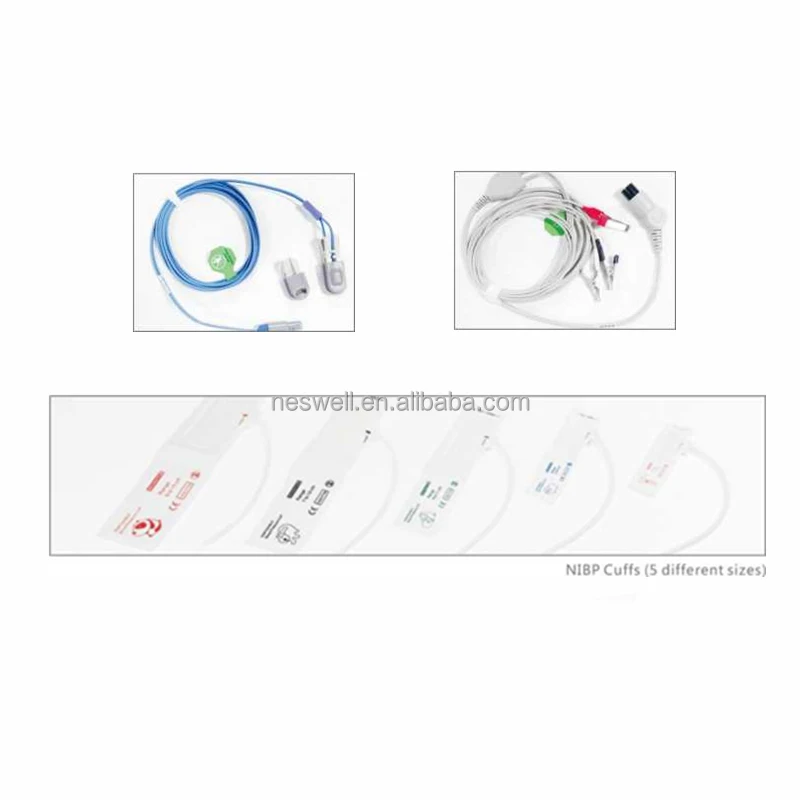

Packing List:
|
Monitor Main unit 1pc
ECG cable(3 or 5leads) 1pc
Spo2 probe 1pc
Animal use NIBP tube 5pcs
Temperature probe
user manual(English)
AC/DC power cord, power adapter, Ground electrode
|
